CSF 028 | 250 W, 400 W
Applies to: The compact fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The touch-safe plastic housing and the small dimensions makes it ideal for use in enclosures with high packing density. The CSF 028 is equipped with a pre-set thermostat. It is connected via external clamps. The fan heater is available with two different mounting systems - either mounting by screw flange or by clip. The robust screw flange fixing is particularly suitable for applicat
download> Small, compact design > Touch-safe
> Integrated pre-set thermostat > Quick connection
> Dynamic heating up > Clip or screw flange fixing
The compact fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The touch-safe plastic housing and the small dimensions makes it ideal for use in enclosures with high packing density. The CSF 028 is equipped with a pre-set thermostat. It is connected via external clamps. The fan heater is available with two different mounting systems - either mounting by screw flange or by clip. The robust screw flange fixing is particularly suitable for applications with high vibration.
| Art. No. clip fixing | Art. No. screw flange fixing | Operating voltage | Heating capacity1 | Inrush current max. | Recommended pre-fuse T (time-delay) | Switch-off temperature2 | Switch-on temperature2 | Approvals | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02821.0-06 | 02821.0-08 | 230VAC, 50/60Hz | 250W | 9.0A | 10.0A | +15°C (+59°F) | +5°C (+41°F) | VDE | UL File No. E234324 | EAC |
| 02821.0-09 | 02821.0-11 | 230VAC, 50/60Hz | 250W | 9.0A | 10.0A | +25°C (+77°F) | +15°C (+59°F) | VDE | UL File No. E234324 | EAC |
| 02820.0-06 | 02820.0-08 | 230VAC, 50/60Hz | 400W | 15.0A | 16.0A | +15°C (+59°F) | +5°C (+41°F) | VDE | UL File No. E234324 | EAC |
| 02820.0-09 | 02820.0-11 | 230VAC, 50/60Hz | 400W | 15.0A | 16.0A | +25°C (+77°F) | +15°C (+59°F) | VDE | UL File No. E234324 | EAC |
| 02821.9-06 | 02821.9-08 | 120VAC, 50/60Hz | 250W | 6.0A | 10.0A | +15°C (+59°F) | +5°C (+41°F) | - | UL File No. E234324 | EAC |
| 02821.9-09 | 02821.9-11 | 120VAC, 50/60Hz | 250W | 6.0A | 10.0A | +25°C (+77°F) | +15°C (+59°F) | - | UL File No. E234324 | EAC |
| 02820.9-06 | 02820.9-08 | 120VAC, 50/60Hz | 400W | 9.0A | 10.0A | +15°C (+59°F) | +5°C (+41°F) | - | UL File No. E234324 | EAC |
| 02820.9-09 | 02820.9-11 | 120VAC, 50/60Hz | 400W | 9.0A | 10.0A | +25°C (+77°F) | +15°C (+59°F) | - | UL File No. E234324 | EAC |
1 at +20°C (+68°F) ambient temperature; 2 tolerance of ±5K
Note: Other switch-off and switch-on temperatures on request.
Air duct for improved heat distribution

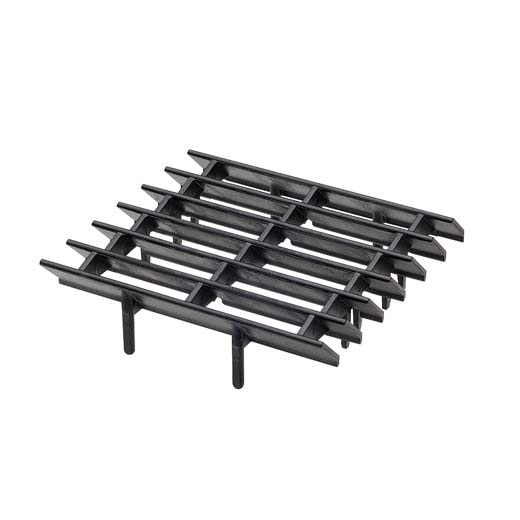

The air duct is an accessory part for use with the fan heater CSF 028. It can easily be clipped onto the protective grille of the fan heater without use of any tools, and diverts the exiting warm air by 45°. This results in an overall improved heat distribution within an enclosure or cabinet. The temperature above the protective grille is reduced by up to 20 °C (measured 100 mm above protective grille) and may make the use of a heat conduction plate obsolete.
| Art. No. | Dimensions2 | Plastic | 1 Packing unit | Weight (approx.) |
|---|---|---|---|---|
| 252017 | 85 x 85 x 12 mm | according to UL94 V-0, black | 1 piece | 35 g |
2 Dimensions when mounted on fan heater.
Air duct Art. No. 252017
Fan heater with air duct
| Heating element | PTC resistor - temperature limiting |
|---|---|
| Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
| Axial fan, ball bearing | air flow, free flow CSF 028: 45m3/h (230VAC), 54m3/h (120VAC) service life 40,000h at +40°C (+104°F) |
| Connection | 2-pole dual pressure clamp for rigid wire 2.5mm2, stranded wire (with wire end ferrule) 1.5mm2 |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 or screw fixing (? 5.5mm), clamping torque 2Nm max., washers have to be used |
| Fitting position | vertical airflow (air outlet up) |
| Dimensions | models with clip fixing: 105 x 85 x 118mm, models with screw flange fixing: 105 x 115 x 108mm |
| Weight | 0.5kg |
| Operating/Storage temperature | -40 to +70°C (-40 to +158°F)/-45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
