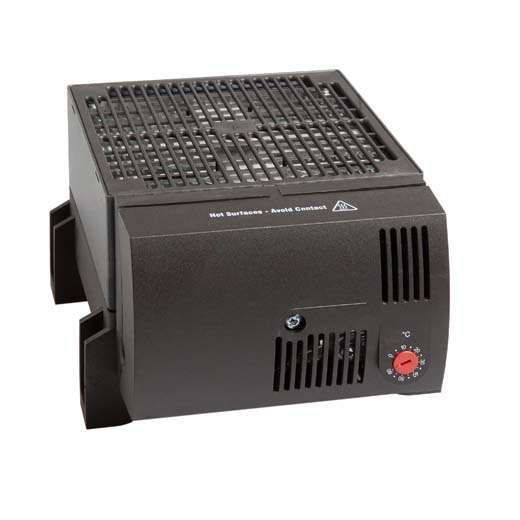

CR 030 | 950W
Applies to: The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control. The CR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CR 130 is recommended.
download> Compact design
> Double insulated
> Integrated thermostat or hygrostat
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control. The CR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CR 130 is recommended.
Compact High-performance Fan Heater CR 030 Series
| Art. No. | Model | Operating voltage | Heating capacity | Recommended pre-fuse T (time-delay) | Setting range2 | Approvals | ||
|---|---|---|---|---|---|---|---|---|
| 03051.0-00 | Fan Heater with thermostat | 230VAC, 50/60Hz | 950W | 6.3A | 0 to +60°C | VDE | UL File No. E234324 | EAC |
| 03059.9-00 | Fan Heater with thermostat | 120VAC, 50/60Hz | 950W | 10.0A | +32 to +140°F | - | UL File No. E234324 | EAC |
| Heating element | high performance cartridge |
|---|---|
| Temperature safety cut-out | with automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure |
| Heater body | extruded aluminium profile |
| Axial fan, ball bearing | airflow 160m3/h, free flow service life 50,000h at +25°C (+77°F) |
| Connection | 2-pole max. 2.5mm2, clamping screw with strain relief, torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | screw fixing (M5) |
| Fitting position | vertical airflow (air outlet up) |
| Dimensions | 168 x 145 x 100mm |
| Weight | approx. 1.4kg |
| Operating1/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
| Note | other heating capacities from 200W up available on request |
1 Operating temperature of heater with integrated hygrostat: 0 to +60°C (+32 to +140°F).
2 Switch temperature difference 7K (±4K tolerance)
