CSK 060 | 10W, 20W, 30 W
Applies to: The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.
download> Low surface temperature > Dynamic heating up
> Double insulated (plastic housing) > Clip fixing
> Wide voltage range
The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.

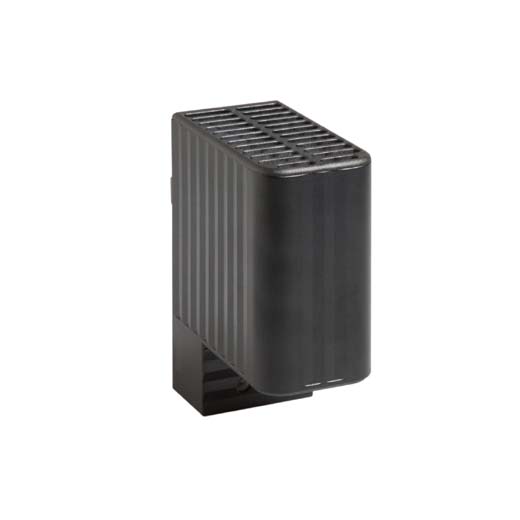

Touch-safe Small Heater CSK 060 Series (Semiconductor)
| Art. No. | Heating capacity2 | Inrush current max. | Recommended pre-fuse T (time-delay) | Weight (approx.) |
|---|---|---|---|---|
| 06040.0-00 | 10W | 1.0A | 2.0A | 0.2kg |
| 06030.0-00 | 20W | 2.5A | 4.0A | 0.3kg |
| 06050.0-00 | 30 W | 2,5 A | 4,0 A | 0,3 kg |
| Operating voltage | 120 - 240V AC/DC1 (min. 110V, max. 265V) |
|---|---|
| Heating element | PTC resistor - temperature limiting |
| Surface temperature | < +85°C (+185°F) (according to VDE 0100), |
| except upper protective grille | |
| Connection | 2-pole terminal 2.5mm2, torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Dimensions | 98 x 38 x 75mm |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up, connection on bottom) |
| Operating/Storage temperature | -45°C to +70°C (-49°F to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
| Approvals | VDE, UL File No. E150057, EAC |
| Note | other voltages on request |
1 Operating with voltages below 140V AC/DC reduces heating performance by approx 10%.
2 at +20°C (+68°F) ambient temperature
