CS 032 / CSF 032 | 1,000W
Applies to: The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat. The CSF 032 is equipped with a pre-set thermostat. Both models were designed for wall fixing. A fan heater for fixing on the bottom of the enclosure is available on request.
download> Compact and slim design > With or without thermostat
> High heating performance > Quick connection
> Double insulated
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. Two screw connectors at the front of CS 032 allow comfortable wiring of an external thermostat. The CSF 032 is equipped with a pre-set thermostat. Both models were designed for wall fixing. A fan heater for fixing on the bottom of the enclosure is available on request.

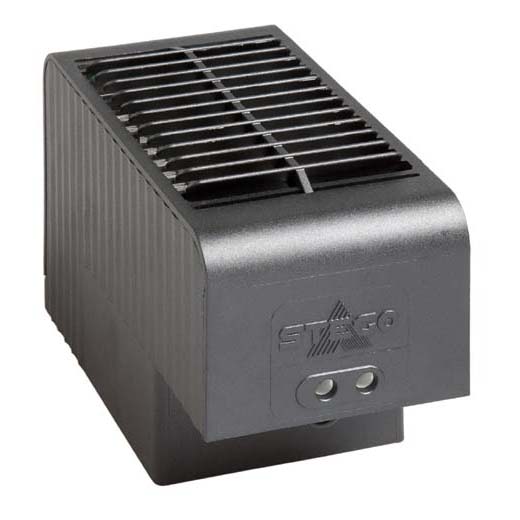

Fan heater CS 032

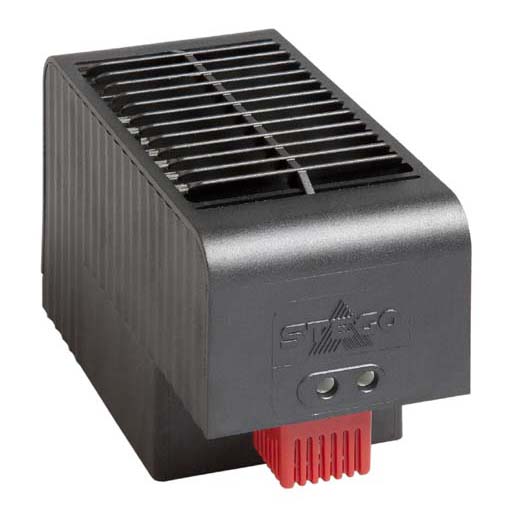

Fan heater CSF 032
| Art. No. Clip fixing | Art. No. Screw fixing | Operating voltage | Heating capacity1 | Inrush current max. |
|---|---|---|---|---|
| 03209.0-00 | 03209.0-01 | 220-240VAC, 50/60Hz | 1,000W | 12.0A |
| 03209.9-00 | 03209.9-01 | 100-120VAC, 50/60Hz | 1,000W | 18.0A |
| Art. No. Clip fixing | Art. No. Screw fixing | Operating voltage | Heating capacity1 | Inrush current max. | Switch-off temperature2 | Switch-on temperature2 |
|---|---|---|---|---|---|---|
| 03201.0-00 | 03201.0-01 | 220-240VAC, 50/60Hz | 1,000W | 12.0A | +25°C (+77°F) | +15°C (+59°F) |
| 03202.0-00 | 03202.0-01 | 220-240VAC, 50/60Hz | 1,000W | 12.0A | +15°C (+59°F) | +5°C (+41°F) |
| 03201.9-00 | 03201.9-01 | 100-120VAC, 50/60Hz | 1,000W | 18.0A | +25°C (+77°F) | +15°C (+59°F) |
| 03202.9-00 | 03202.9-01 | 100-120VAC, 50/60Hz | 1,000W | 18.0A | +15°C (+59°F) | +5°C (+41°F) |
1 at +25°C (+77°F) ambient temperature; 2 tolerance ±5K
Note: Other switch-off and switch-on temperatures on request.
| Art. No. | Length (L) |
|---|---|
| 244379 | 1.0m |
| 244380 | 2.0m |

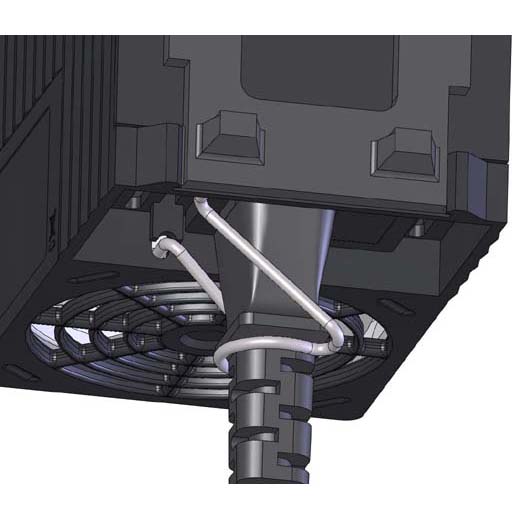

| Art. No. | Note |
|---|---|
| 237009 | Suitable for female power insert connector on connection cable 244379 and 244380 |
| Heating element | PTC resistor – temperature limiting |
|---|---|
| Surface temperature | max. +80 °C (+176 °F)，except upper protective gille，at +20 °C (+68 °F) ambient temperature |
| Temperature safety cut-out | to protect against overheating in case of fan failure,automatic reset |
| Axial fan,ball bearing | air flow 63 m3/h，free flow， service life 70,000 h at25 °C (77 °F) |
| Connection | male power insert connector according to IEC320 C18 |
| Casing | plastic according to UL94 V-0，black |
| Mounting | clip for 35 mm DIN rail，EN 60715 or screw fixing (M5)，tightening torque 2 Nm max. |
| Fitting position | airflow direction up |
| Dimensions | 152.5 x 88 x 66mm |
| weight | approx 0.5kg |
| Operation/Storage temperature | -40 to +60°C (-40 to +140°F) / -40 to +70°C (-40 to +158°F) |
| Operation/Storage temperature | max. 90%RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
| Approvals | VDE, UL file E234324, EAC |
