HV 031 / HVL 031 | 100W TO 400W
Applies to: Compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. This fan heater may only be operated together with a fan but is also available without fan for self-assembly (HV 031) and with pre-configured fan (HVL 031).
download> Compact > Temperature safety cut-out
> Flat design > Clip fixing
> High air through-flow
Compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. This fan heater may only be operated together with a fan but is also available without fan for self-assembly (HV 031) and with pre-configured fan (HVL 031).

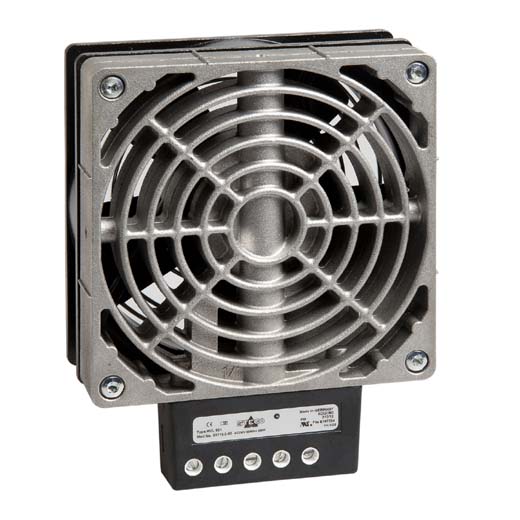

a.) Clip b.) Type plate c.) Axial fan d.) Air direction

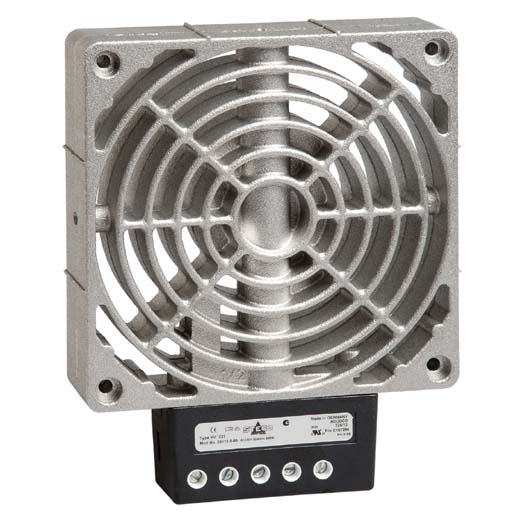

Space-saving Fan Heater HV 031 / HVL 031
| Art. No. HV 031 | Art. No. HV 031 | Heating capacity | Recommended pre-fuse T (time-delay) | Dimensions | Weight (approx.) | |
|---|---|---|---|---|---|---|
| 230VAC, 50/60Hz | 120VAC, 50/60Hz | 230VAC | 120VAC | |||
| 03100.0-00 | 03100.9-00 | 100W | 1.0A | 2.0A | 80 x 112 x 22mm | 0.4kg |
| 03101.0-00 | 03101.9-00 | 150W | 1.25A | 2.5A | 80 x 112 x 22mm | 0.4kg |
| 03110.0-00 | 03110.9-00 | 200W | 2.0A | 3.0A | 119 x 151 x 22mm | 0.5kg |
| 03111.0-00 | 03111.9-00 | 300W | 2.0A | 4.0A | 119 x 151 x 22mm | 0.5kg |
| 03112.0-00 | 03112.9-00 | 400W | 4.0A | 6.3A | 119 x 151 x 22mm | 0.5kg |
| Art. No. HVL 031 | Art. No. HVL 031 | Heating capacity | Recommended pre-fuse T (time-delay) | Airflow min., free flow | Dimensions | Weight (approx.) | |
|---|---|---|---|---|---|---|---|
| 230VAC, 50/60Hz | 120VAC, 50/60Hz | 230VAC | 120VAC | ||||
| 03102.0-00 | 03102.9-00 | 100W | 1.0A | 2.0A | 35m3/h | 80 x 112 x 47mm | 0.6kg |
| 03103.0-00 | 03103.9-00 | 150W | 1.25A | 2.5A | 35m3/h | 80 x 112 x 47mm | 0.6kg |
| 03113.0-00 | 03113.9-00 | 200W | 2.0A | 3.0A | 108m3/h | 119 x 151 x 47mm | 0.9kg |
| 03114.0-00 | 03114.9-00 | 300W | 2.0A | 4.0A | 108m3/h | 119 x 151 x 47mm | 0.9kg |
| 03115.0-00 | 03115.9-00 | 400W | 4.0A | 6.3A | 108m3/h | 119 x 151 x 47mm | 0.9kg |
| HV 031 | Heater without fan (fan mounting kit included) |
|---|---|
| HVL 031 | Heater with fan |
| Heating element | high performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure, |
| automatic reset | |
| Heater body | die-cast aluminium (glass bead blasted) |
| Connection | 3-pole screw connector 2.5mm2, clamping torque 0.8Nm max. |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up) |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
| Approvals | UL File No. E234324, EAC, VDE only: 230V |
| HVL 031 only: | |
| Axial fan, ball bearing | airflow see table |
| service life 50,000h at +25°C (+77°F) | |
| Connection (axial fan) | 2-pole screw connector 2.5mm2 (L2/N2) |
Important note: Heater may only be operated together with fan. Danger of overheating!
