DCF 010 | DC 20 TO 56 V
Applies to: The electronic hygrostat with integrated switch module is used to control DC powered devices with high capacities in control and switch cabinets. Heaters, coolers, filter fans or signal devices can directly be controlled via an internal electronic circuit. The external sensor can be positioned freely anywhere in the control cabinet for precise measurement of the atmospheric humidity. Additionally, this hygrostat is available in versions that not only measure the relative humidity via the external sensor, but also the temperature.
download> High DC switching capacity
> Adjustable humidity
> Small hysteresis
> Optical operating display (LED)
> Integrated switch module
> Precise measurement via an external sensor
The electronic hygrostat with integrated switch module is used to control DC powered devices with high capacities in control and switch cabinets. Heaters, coolers, filter fans or signal devices can directly be controlled via an internal electronic circuit. The external sensor can be positioned freely anywhere in the control cabinet for precise measurement of the atmospheric humidity. Additionally, this hygrostat is available in versions that not only measure the relative humidity via the external sensor, but also the temperature.

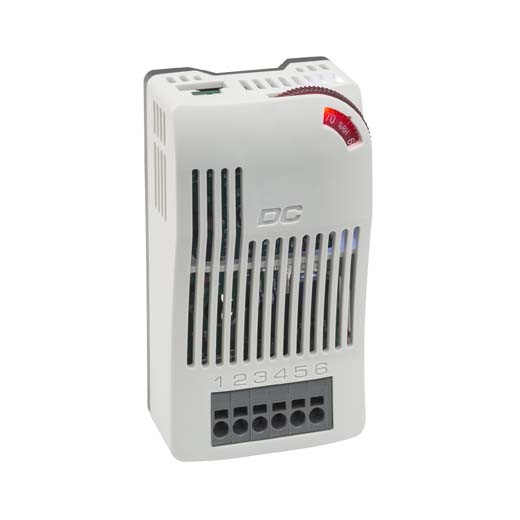

Electronic Hygrostat DCF 010

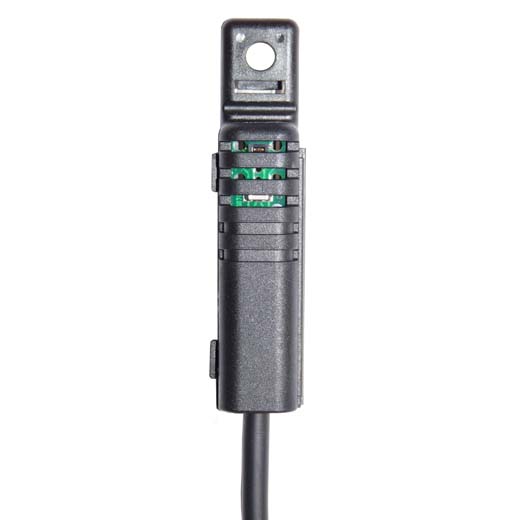

External sensor
| Art. No. | Max. switching capacity | Operating temperature | Primary switching function - setting range humidity | Secondary switching function2 - Switch-on temperature | Contact (primary) |
|---|---|---|---|---|---|
| 01012.0-20 | DC 15 A | -30 °C to +40 °C (-22 °F to +104 °F) | 40 to 90 % RH | +5 °C (+41 °F) pre-set | Contact maker (NO) |
| 01012.0-21 | DC 13 A | -30 °C to +50 °C (-22 °F to +122 °F) | 40 to 90 % RH | +5 °C (+41 °F) pre-set | Contact maker (NO) |
| 01012.0-22 | DC 11 A | -30 °C to +60 °C (-22 °F to +140 °F) | 40 to 90 % RH | +5 °C (+41 °F) pre-set | Contact maker (NO) |
| Switch difference (humidity) | 4 % RH (±1 % tolerance) at +25 °C (+77 °F), 50 % RH |
|---|---|
| Reaction time | approx. 5 sec. |
| External sensor | cable 2 m with snap in connector (included in the delivery) |
| Contact type | contact maker NO (MOSFET) or contact breaker NC (MOSFET) |
| Service life | > 100,000 cycles |
| Operating voltage | DC 20 to 56 V |
| Optical indicator | LED |
| Connection | 6-pole terminal: stranded wire1 1.5 mm2 (AWG 16); max. 2.5 mm2 (AWG 12) |
| Mounting | clip for 35 mm DIN rail, EN 60715 |
| Casing | plastic according to UL94 V-0, grey (bicolor) |
| Dimensions | 93 x 53 x 44 mm |
| Weight | approx. 120 g (incl. sensor) |
| Fitting position | vertical |
| Storage temperature | -40 to +80 °C (-40 to +176 °F) |
| Operating/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Approvals | UL File No. E164102, VDE, EAC |
| Note | other versions on request |
1 When connecting with stranded wires, wire end ferrules must be used.
2 Versions with secondary switching function can also register the temperature and therefore offer an additional protection for electronics.
Switch difference: 3 K (±1 K tolerance) at +25 °C (+77 °F), 50 % RH.
