LED 021/022
Applies to: The LED 021/022 Varioline is a powerful and compact LED lamp for use in enclosures. Its LED tube emits more than 1,000/1,700 Lm at only 11 W/16 W power consumption, thereby illuminating even very large enclosures in their full depth and height. The glare-free, 360° rotatable LED tube uses Mid-power LEDs with a service life of 60,000 h. The emitted daylight color of 6,500 K provides safety for the user by a natural and non-fading color reproduction.
download> High luminous flux
> Integrated power unit
> Durable and maintenance-free LED technology
> Daisy chain
> On/off switch or movement sensor
> Magnet or screw fixing
The LED 021/022 Varioline is a powerful and compact LED lamp for use in enclosures. Its LED tube emits more than 1,000/1,700 Lm at only 11 W/16 W power consumption, thereby illuminating even very large enclosures in their full depth and height. The glare-free, 360° rotatable LED tube uses Mid-power LEDs with a service life of 60,000 h. The emitted daylight color of 6,500 K provides safety for the user by a natural and non-fading color reproduction.

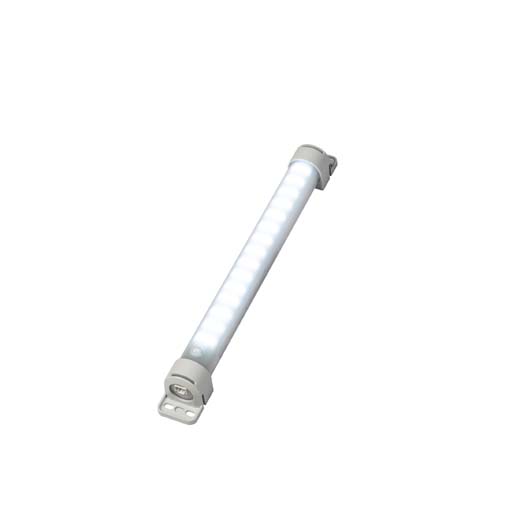

LED 021 (Size 1): L1 = 400 mm, L2 = 375 mm

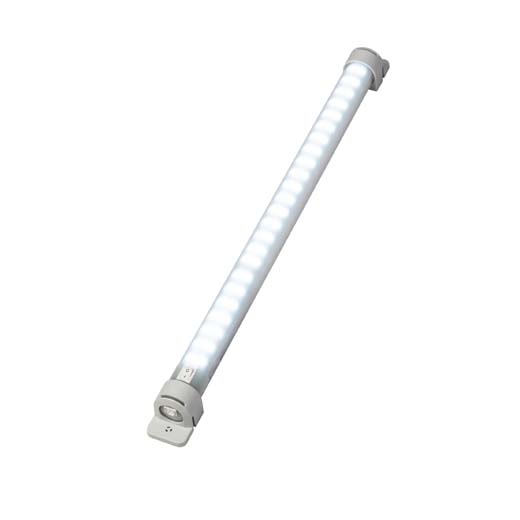

LED 022 (Size 2): L1 = 600 mm, L2 = 575 mm
.
View of magnet and screw fixing
| Size 1: L1 = 400 mm Art. No. Magnet fixing | Size 1: L1 = 400 mm Art. No. Screw fixing | Size 2: L1 = 600 mm Art. No. Magnet fixing | Size 2: L1 = 600 mm Art. No. Screw fixing | Switch | Approvals | |||
|---|---|---|---|---|---|---|---|---|
| 02100.0-30 | 02100.0-00 | 02200.0-30 | 02200.0-00 | on/off switch | VDE | UL File No. E234324 | EAC | |
| 02110.0-30 | 02110.0-00 | 02210.0-30 | 02210.0-00 | PIR movement sensor1 | VDE | UL File No. E234324 | EAC | |
| 02120.0-30 | 02120.0-00 | 02220.0-30 | 02220.0-00 | without switching option | VDE | UL File No. E234324 | EAC | |
1 approx. 5 min. fixed switch-on duration
Connectors and cables for electrical connection are not included in the delivery of the LED 021/022. These parts can be ordered separately. Sets, consisting of lamp and accessories, are available on request. Likewise, custom cables are available on request.
Varioline LED enclosure lamps are also available as a set including the connector Art. No. 264057.
Simply add -0003 to the article number of the required lamp. For example: 02100.0-30-0003
| Art. No. | Model | Voltage type | Color | Use for | Wire cross-section2 | Approvals |
|---|---|---|---|---|---|---|
| 264057 | female connector | AC | white | power input | 0.5-2.5 mm2 (AWG 14-20) | VDE + UL |
| 264058 | male connector | AC | white | power output | 0.5-2.5 mm2 (AWG 14-20) | VDE + UL |
2 applies to rigid and stranded wire. Wire end ferrules must be used when connecting with stranded wires.
| Art. No. | Model | Length | Voltage type | Color | Use for | Approvals3 |
|---|---|---|---|---|---|---|
| 244356 | connection cable 2 x 1.5 mm2 with female connector | 2.0 m | AC | connector: white; cable: white | power input | VDE |
| 244357 | connection cable 2 x AWG 16 with female connector | 2.0 m | AC | connector: white; cable: white | power input | VDE + UL |
3 applies only to the individual components (cable and connectors)
| Art. No. | Model | Length | Voltage type | Color | Use for | Approvals3 |
|---|---|---|---|---|---|---|
| 244358 | extension cable 2 x 1.5 mm2 with 2 connectors | 1.0 m | AC | connectors: white; cable: white | daisy chain | VDE |
| 244359 | extension cable 2 x AWG 16 with 2 connectors | 1.0 m | AC | connectors: white; cable: white | daisy chain | VDE + UL |
3 applies only to the individual components (cable and connectors)
| Power consumption | max. 11 W / 16 W |
|---|---|
| Operating voltage | AC 100 - 240 V, 50/60 Hz (min. AC 90 V, max. AC 265 V) |
| Luminous flux | 1,080 Lm/1,730 Lm |
| Lamp type | LED, angle of radiation 120°, light color: daylight, color temperature: 6,500 K |
| Service life | 60,000 h at +20 °C (+68 °F) |
| Connection | 2-pole connector with snap lock, AC: max. 2.5 A / AC 240 V, color: white |
| Mounting | magnet fixing or screw fixing (M5), torque 2 Nm max. |
| Casing | plastic, translucent |
| Dimensions | see drawings |
| Weight | approx. 0.2 kg/0.3 kg |
| Operating/Storage temperature | -40 to +40 °C (-40 to +104 °F) / -40 to +85 °C (-40 to +185 °F) |
| Operating/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
Mounting options: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 021/022 with screw fixing. With a total rotation angle of 360° it provides perfect illumination.
Note: The lamp must not be used for household lighting.
