LED 121/122

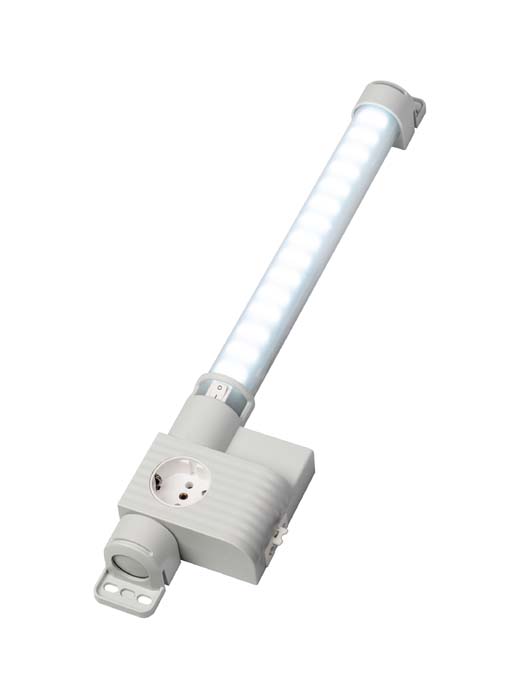

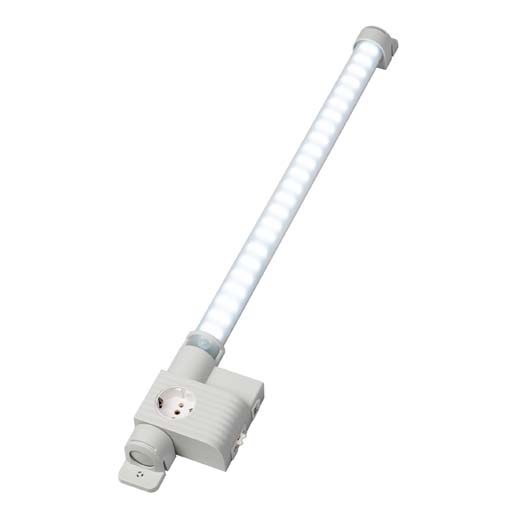

Applies to: The LED 121/122 Varioline is a powerful and compact LED lamp with integrated socket for use in enclosures. Featuring socket standards of many European countries as well as the US and Australia, it allows for the power connection of laptops and diagnostic devices. Its LED tube emits more than 1,000/1,700 Lm thereby illuminating even very large enclosures in their full depth and height. The glare-free, 120° rotatable light tube uses Mid-power LEDs with a service life of 60,000 h.
download> High luminous flux
> Integrated socket
> Durable and maintenance free LED technology
> Integrated power unit
> Daisy chain
> On/off switch, movement sensor or connection for external door switch
The LED 121/122 Varioline is a powerful and compact LED lamp with integrated socket for use in enclosures. Featuring socket standards of many European countries as well as the US and Australia, it allows for the power connection of laptops and diagnostic devices. Its LED tube emits more than 1,000/1,700 Lm thereby illuminating even very large enclosures in their full depth and height. The glare-free, 120° rotatable light tube uses Mid-power LEDs with a service life of 60,000 h.
LED 121 (Size 1): L1 = 500 mm, L2 = 475 mm
LED 122 (Size 2): L1 = 700 mm, L2 = 675 mm
View of magnet and screw fixing
| Size 1: L1 = 500 mm Art. No. Magnet fixing | Size 1: L1 = 500 mm Art. No. Screw fixing | Size 2: L1 = 700 mm Art. No. Magnet fixing | Size 2: L1 = 700 mm Art. No. Screw fixing | Operating voltage | Socket | Nominal current of socket | Approvals | ||
|---|---|---|---|---|---|---|---|---|---|
| 12100.0-30 | 12100.0-00 | 12200.0-30 | 12200.0-00 | AC 220 - 240 V, 50/60 Hz | DE/RU (1) | 16.0 A | VDE | - | EAC |
| 12101.0-30 | 12101.0-00 | 12201.0-30 | 12201.0-00 | AC 220 - 240 V, 50/60 Hz | FR/PL/CZ/SK (2) | 16.0 A | VDE | - | EAC |
| 12102.0-30 | 12102.0-00 | 12202.0-30 | 12202.0-00 | AC 220 - 240 V, 50/60 Hz | CH (3) | 10.0 A | - | - | EAC |
| 12103.0-30 | 12103.0-00 | 12203.0-30 | 12203.0-00 | AC 220 - 240 V, 50/60 Hz | UK/IRL (4) | 13.0 A | VDE | - | EAC |
| 12104.0-30 | 12104.0-00 | 12204.0-30 | 12204.0-00 | AC 120 V, 50/60 Hz | USA/Canada (5) | 15.0 A | - | UL File No. E234324 | EAC |
| 12105.0-30 | 12105.0-00 | 12205.0-30 | 12205.0-00 | AC 220 - 240 V, 50/60 Hz | IT (6) | 16.0 A | VDE | - | EAC |
| 12107.0-30 | 12107.0-00 | 12207.0-30 | 12207.0-00 | AC 220 - 240 V, 50/60 Hz | AUS (7) | 10.0 A | VDE | - | EAC |
| Size 1: L1 = 500 mm Art. No. Magnet fixing | Size 1: L1 = 500 mm Art. No. Screw fixing | Size 2: L1 = 700 mm Art. No. Magnet fixing | Size 2: L1 = 700 mm Art. No. Screw fixing | Operating voltage | Socket | Nominal current of socket | Approvals | ||
|---|---|---|---|---|---|---|---|---|---|
| 12110.0-30 | 12110.0-00 | 12210.0-30 | 12210.0-00 | AC 220 - 240 V, 50/60 Hz | DE/RU (1) | 16.0 A | VDE | - | EAC |
| 12111.0-30 | 12111.0-00 | 12211.0-30 | 12211.0-00 | AC 220 - 240 V, 50/60 Hz | FR/PL/CZ/SK (2) | 16.0 A | VDE | - | EAC |
| 12112.0-30 | 12112.0-00 | 12212.0-30 | 12212.0-00 | AC 220 - 240 V, 50/60 Hz | CH (3) | 10.0 A | - | - | EAC |
| 12113.0-30 | 12113.0-00 | 12213.0-30 | 12213.0-00 | AC 220 - 240 V, 50/60 Hz | UK/IRL (4) | 13.0 A | VDE | - | EAC |
| 12114.0-30 | 12114.0-00 | 12214.0-30 | 12214.0-00 | AC 120 V, 50/60 Hz | USA/Canada (5) | 15.0 A | - | UL File No. E234324 | EAC |
| 12115.0-30 | 12115.0-00 | 12215.0-30 | 12215.0-00 | AC 220 - 240 V, 50/60 Hz | IT (6) | 16.0 A | VDE | - | EAC |
| 12117.0-30 | 12117.0-00 | 12217.0-30 | 12217.0-00 | AC 220 - 240 V, 50/60 Hz | AUS (7) | 10.0 A | VDE | - | EAC |
PIR movement sensor features approx. 5 min fixed switch-on duration.
| Size 1: L1 = 500 mm Art. No. Magnet fixing | Size 1: L1 = 500 mm Art. No. Screw fixing | Size 2: L1 = 700 mm Art. No. Magnet fixing | Size 2: L1 = 700 mm Art. No. Screw fixing | Operating voltage | Socket | Nominal current of socket | Approvals | ||
|---|---|---|---|---|---|---|---|---|---|
| 12120.0-30 | 12120.0-00 | 12220.0-30 | 12220.0-00 | AC 220 - 240 V, 50/60 Hz | DE/RU (1) | 16.0 A | VDE | - | EAC |
| 12121.0-30 | 12121.0-00 | 12221.0-30 | 12221.0-00 | AC 220 - 240 V, 50/60 Hz | FR/PL/CZ/SK (2) | 16.0 A | VDE | - | EAC |
| 12122.0-30 | 12122.0-00 | 12222.0-30 | 12222.0-00 | AC 220 - 240 V, 50/60 Hz | CH (3) | 10.0 A | - | - | EAC |
| 12123.0-30 | 12123.0-00 | 12223.0-30 | 12223.0-00 | AC 220 - 240 V, 50/60 Hz | UK/IRL (4) | 13.0 A | VDE | - | EAC |
| 12124.0-30 | 12124.0-00 | 12224.0-30 | 12224.0-00 | AC 120 V, 50/60 Hz | USA/Canada (5) | 15.0 A | - | UL File No. E234324 | EAC |
| 12125.0-30 | 12125.0-00 | 12225.0-30 | 12225.0-00 | AC 220 - 240 V, 50/60 Hz | IT (6) | 16.0 A | VDE | - | EAC |
| 12127.0-30 | 12127.0-00 | 12227.0-30 | 12227.0-00 | AC 220 - 240 V, 50/60 Hz | AUS (7) | 10.0 A | VDE | - | EAC |
| Size 1: L1 = 500 mm Art. No. Magnet fixing | Size 1: L1 = 500 mm Art. No. Screw fixing | Size 2: L1 = 700 mm Art. No. Magnet fixing | Size 2: L1 = 700 mm Art. No. Screw fixing | Operating voltage | Socket | Nominal current of socket | Approvals | ||
|---|---|---|---|---|---|---|---|---|---|
| 12130.0-30 | 12130.0-00 | 12230.0-30 | 12230.0-00 | AC 220 - 240 V, 50/60 Hz | DE/RU (1) | 16.0 A | VDE | - | EAC |
| 12131.0-30 | 12131.0-00 | 12231.0-30 | 12231.0-00 | AC 220 - 240 V, 50/60 Hz | FR/PL/CZ/SK (2) | 16.0 A | VDE | - | EAC |
| 12132.0-30 | 12132.0-00 | 12232.0-30 | 12232.0-00 | AC 220 - 240 V, 50/60 Hz | CH (3) | 10.0 A | - | - | EAC |
| 12133.0-30 | 12133.0-00 | 12233.0-30 | 12233.0-00 | AC 220 - 240 V, 50/60 Hz | UK/IRL (4) | 13.0 A | VDE | - | EAC |
| 12134.0-30 | 12134.0-00 | 12234.0-30 | 12234.0-00 | AC 120 V, 50/60 Hz | USA/Canada (5) | 15.0 A | - | UL File No. E234324 | EAC |
| 12135.0-30 | 12135.0-00 | 12235.0-30 | 12235.0-00 | AC 220 - 240 V, 50/60 Hz | IT (6) | 16.0 A | VDE | - | EAC |
| 12137.0-30 | 12137.0-00 | 12237.0-30 | 12237.0-00 | AC 220 - 240 V, 50/60 Hz | AUS (7) | 10.0 A | VDE | - | EAC |
| Power consumption | max. 11 W/ 16 W |
|---|---|
| Operating voltage | AC 220 - 240 Vm 50/60 Hz (min. AC 200 V, max. AC 265 V) AC 120 V, 50/60 Hz (min. AC 110 V, max. AC 130 V) |
| Luminous flux | 1,080 Lm / 1,730 Lm |
| Lamp type | LED, angle of radiation 120°, light color: daylight, color temperature: 6,500 K |
| Service life | 60,000 h at +20 °C (+68 °F) |
| Connection | 3-pole connector with snap lock, AC: max. 2.5 A / AC 240 V, color: white |
| Mounting | magnet fixing or screw fixing (M5), torque 2 Nm max. |
| Casing | plastic, translucent |
| Dimensions | see drawings |
| Weight | approx. 0.3 kg / 0.4 kg |
| Operating/Storage temperature | -40 to +40 °C (-40 to +104 °F) / -40 to +85 °C (-40 to +185 °F) |
| Operation/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
Mounting options: The lamps are available with magnet fixing for easy positioning in any steel cabinet or enclosure. A classic is the LED 121/122 with screw fixing. With a total rotation angle of 120° it provides perfect illumination.
Note: The lamp must not be used for household lighting.
