DA 284
Applies to: Pressure differentials in a hermetically sealed enclosure are a result of the heat generated by electrical and electronic components in the enclosure, as well as the fluctuation of the outside temperature. In the case of negative pressure or vacuum, for example, dust and humidity can enter the enclosure trough the door seal. The DA 284 Vent Plug provides a protected enclosure environment for valuable and crucial components with a UL 4X rated degree of protection. A waterproof membrane inside the device allows air and humidity to leave the enclosure
download> UL Type 1, 4, 4X & IP66 protection
> Waterproof membrane
> Easy to install
> Two sizes - M40 & M12
Pressure differentials in a hermetically sealed enclosure are a result of the heat generated by electrical and electronic components in the enclosure, as well as the fluctuation of the outside temperature. In the case of negative pressure or vacuum, for example, dust and humidity can enter the enclosure trough the door seal. The DA 284 Vent Plug provides a protected enclosure environment for valuable and crucial components with a UL 4X rated degree of protection. A waterproof membrane inside the device allows air and humidity to leave the enclosure while not allowing moisture and dust from the outside to enter.

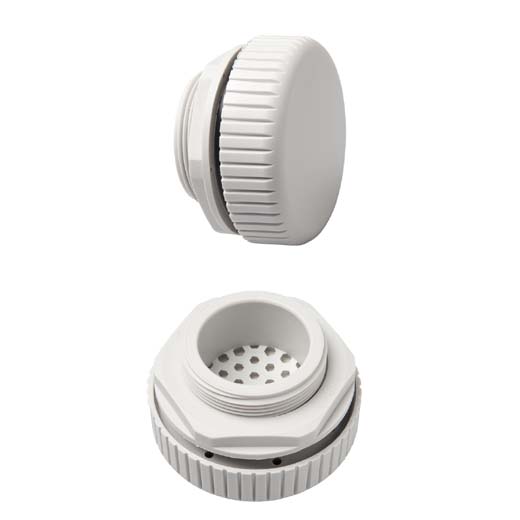

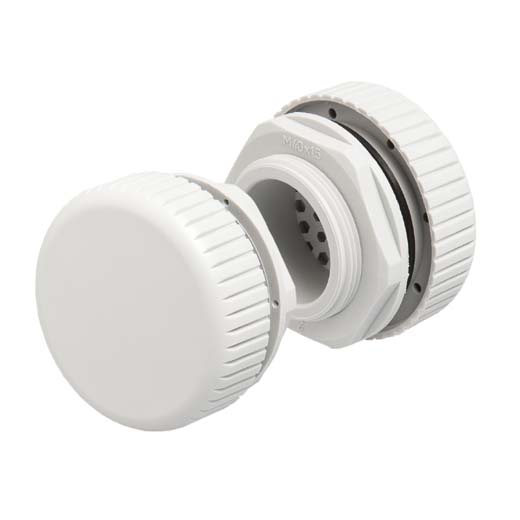

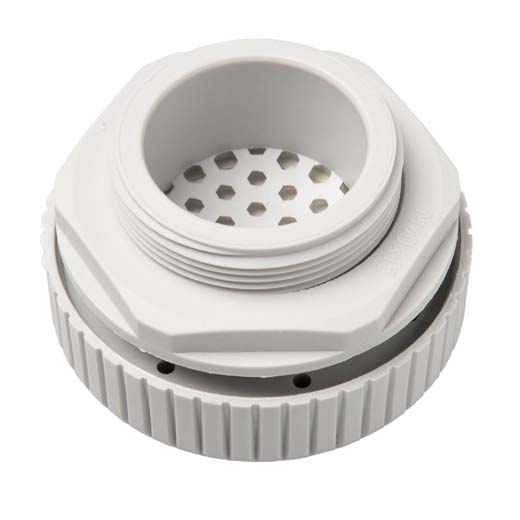

DA 284 Vent Plug M40
| Part No. | Model | Thread length (depth in enclosure) | Protection type | Air permeability1 | 1 packing unit | Weight (approx.) |
|---|---|---|---|---|---|---|
| 28405.0-00 | M40 x 1.5 | approx. 16 mm | IP66 (EN 60529) / IPX9K (EN 40050-9) | 1200 liters/hr | 2 pieces | 3.2 oz. (90 g) total |

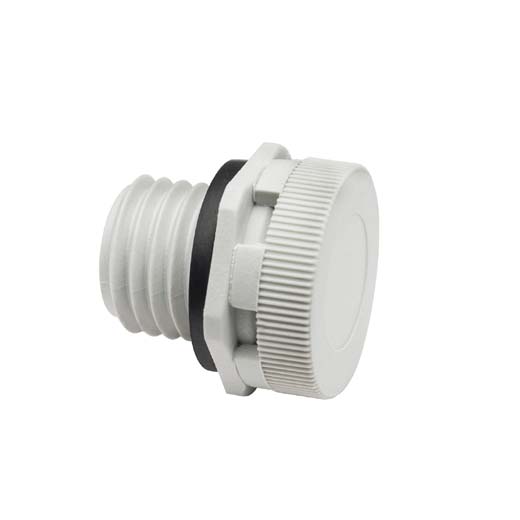

| 28406.0-00 | M12 x 1.5 | approx. 10 mm | IP66 (EN 60529) | 120 liters/hr | 2 pieces | 0.14 oz. (4 g) total |
| Mounting | thread with nut (see below) |
|---|---|
| Torque | 5 Nm |
| Material | plastic according to UL 94V-0, light grey, weather and UV light resistant according to UL 746C (f1) |
| Sealing | NBR gasket |
| Filter | waterproof membrane |
| Operating / Storage temperature | -49 to +158 °F (-45 to 70 °C) |
| Protection type | see below |
| Agency approvals | UL File No. E234324, EAC |
| Environmental rating | Type 1, 4 and 4X |
Installation
Make cut-out in enclosure wall of diameter 1.58 inches (40-40.2 mm) for size M40 or 0.48 inches (12-12.2 mm) for size M12, and mount vent plug with nut. Make sure that the sealing gasket is placed on the outer side of the enclosure. For optimal pressure compensation, it is recommended to use two devices on opposite sides towards the top of the enclosure.
