> High degree of protection
> Good drainage performance
> Easy to install
> Weather and UV-light resistant
Condensation can occur in enclosures with high protection types by variations in temperature. The use of a DD 084 drainage device allows the removal of the condensate without losing the maximum IP66 protection type. The specific characteristic of the water permeable membrane ensures the drainage of the condensate via capillary action. The unique construction also prohibits the ingression of splash water into the enclosure.

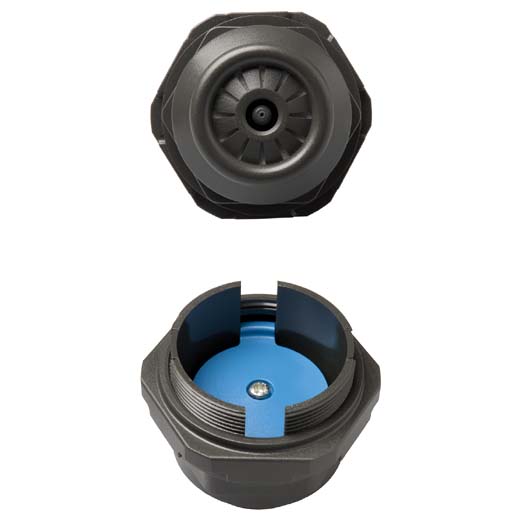

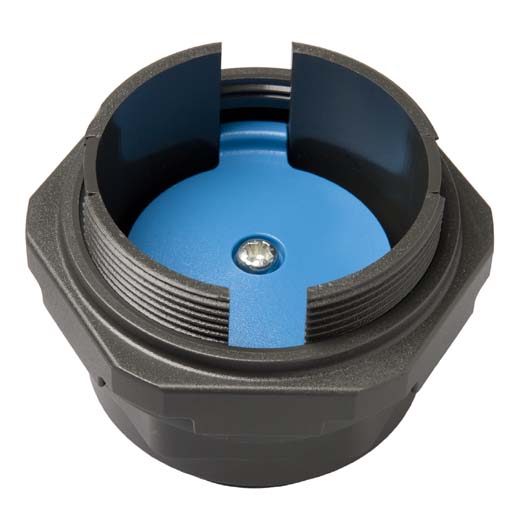

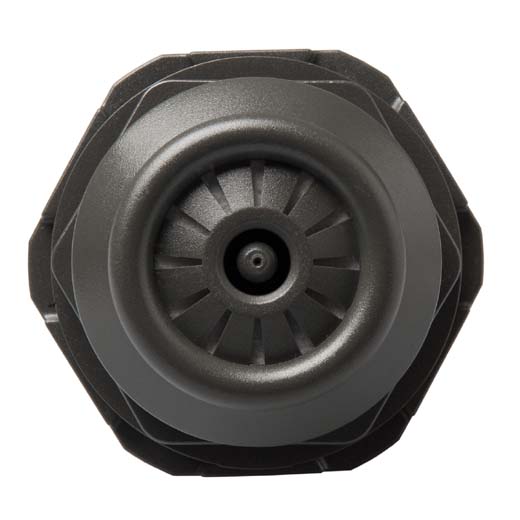

Drainage Device DD 084
| Part No. | Protection type | Enclosure wall thickness | 1 package unit | Weight (approx.) |
|---|---|---|---|---|
| 08410.0-00 | IP66 / IP67 (EN 60529) / IP69K (EN 40050-9) | 0.5 - 5.5 mm | 1 piece | 2 oz. (60 g) |
| Mounting | thread M50 x 1.5 with nut (wrench size 60 mm, housing 50 mm) |
|---|---|
| Torque | 6 Nm max. |
| Depth in enclosure | approx. 0.7" (17.5 mm) |
| Material | plastic according to UL 94V-0, umbra grey, weather and UV light resistant according UL 746C (f1) |
| Water entry height | 0 mm (at 0.5 mm wall thickness) |
| Sealing | sealing gasket NBR |
| Water flow-through | approx. 200 ml/hr at 5 mm water column |
| Dimensions | ? 2.36" x 1.9" (? 60 x 49.5 mm) |
| Mounting position | vertical, lowest point |
| Operating / Storage temperature | -49 to +158 °F (-45 to +70 °C) |
| Approvals | EAC |
Installation
Make cut-out ? 2.0 inches (50.5+0.5 mm) in enclosure bottom and mount drainage device with nut. Please make sure that the sealing gasket is put in place on the outer side panel of the enclosure and the hole is free of burrs.
