Applies to: STEGOFIX PLUS allows for a quick and easy direct mounting of smaller devices where DIN Rails may be inconvenient, i.e. in cabinets and enclosures. It is suitable for devices with a DIN clip of 66 mm/2.6” width max., replacing the conventional 35 mm/1.4” DIN rail. STEGOFIX PLUS is available in three different mounting versions – for screw mounting with 25 mm/.98” pitch, with high-performance adhesive tape or rubberized neodymium magnets – offering the right mounting method for almost any application.
download> Alternative to 35 mm DIN rail > Optional:
> Simple installation Screw mounting
> For small, DIN rail mountable devices Self-adhesive tape mounting or
Magnet mounting
STEGOFIX PLUS allows for a quick and easy direct mounting of smaller devices where DIN Rails may be inconvenient, i.e. in cabinets and enclosures. It is suitable for devices with a DIN clip of 66 mm/2.6” width max., replacing the conventional 35 mm/1.4” DIN rail. STEGOFIX PLUS is available in three different mounting versions – for screw mounting with 25 mm/.98” pitch, with high-performance adhesive tape or rubberized neodymium magnets – offering the right mounting method for almost any application.

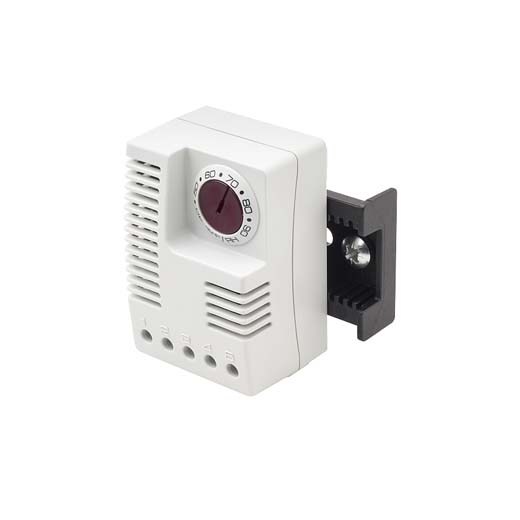

STEGOFIX PLUS SFP 095
| Part No. | Model | Max. Holding force1 | 1 packing unit | Weight (approx.) |
|---|---|---|---|---|
| 09550.0-05 | Screw mounting | - | 5 pieces | 2.3 oz. (65 g) total / 0.46 oz. (13 g) per piece |
| 09550.1-05 | Self-adhesive tape mounting | 75 N | 5 pieces | 2.5 oz. (70 g) total / 0.49 oz. (14 g) per piece |
| 09550.2-05 | Magnet mounting | 30 N | 5 pieces | 5.1 oz. (145 g) total / 1.0 oz. (29 g) per piece |
1 At room temperature. Depending on the conditions of use (e.g. surface condition, size of device to be mounted, etc.) the actual holding force may differ from the values specified in the table above.

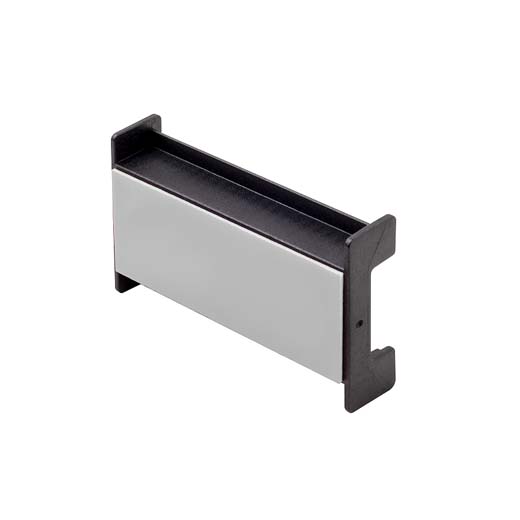

Self-adhesive tape mounting

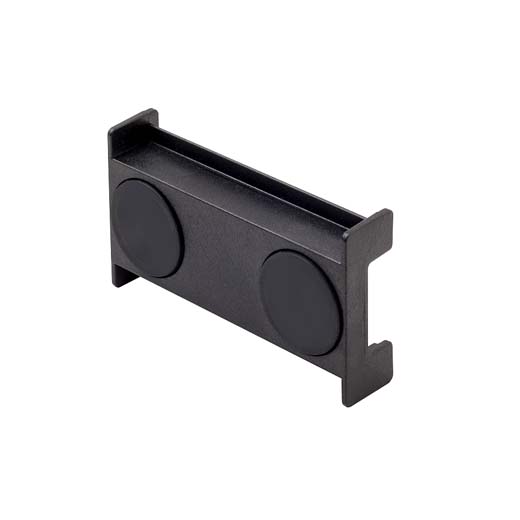

Magnet mounting
| Applications | For devices designed for DIN rail mounting on 35 mm DIN rail (according to EN 60715), max. clip width 66 mm (2.6”) |
|---|---|
| Mounting > Screw mounting > Self-adhesive tape mounting > Magnet mounting |
|
| Material | plastic, UL94V-0, black |
| Dimensions | 2.8 x 1.6 x 0.6” (71 x 40 x 15 mm) |
| Operating temperature | -31 to +167 °F (-35 to +75 °C) |
| Storage conditions (self-adhesive tape) | optimal storage conditions for self-adhesive tape approx. +68 °F (+20 °C) at 50 % RH |
| Approvals | EAC |
Installation notes: The self-adhesive mounting option can only be maintained on smooth surfaces, e.g. metals, lacquered surfaces and plastics (except, polyethylene, polypropylene and rubber). The surfaces must be dry & free from dust, oil separating agents & other contamination.
