DCR 030 | DC 24V, DC 56V - 200W TO 800W
Applies to: The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The fan heater is available with an integrated electronic thermostat or integrated electronic hygrostat. The model with thermostat is available with internal or external sensor. The fan heater with integrated hygrostat is equipped with an external sensor. The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temp
download> High DC heating performance > Integrated switch module
> Integrated thermostat or hygrostat (optional) > Screw fixing
> Small hysteresis > Optical indicator (LED)
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The fan heater is available with an integrated electronic thermostat or integrated electronic hygrostat. The model with thermostat is available with internal or external sensor. The fan heater with integrated hygrostat is equipped with an external sensor. The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and humidity. The DCR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater DCR 130 is recommended.
High-performance Fan Heater DCR 030
| Art. No. | Model | Operating voltage | Heating capacity | Recommended pre-fuse T (time-delay) | Setting range3 temperature / humidity |
|---|---|---|---|---|---|
| 03092.1-12 | Fan heater with integrated thermostat with internal temperature sensor | DC 24 V | 200 W | 16.0 A | -20 to +40 °C |
| 03092.1-13 | Fan heater with integrated thermostat with connector for external temperature sensor2 | DC 24 V | 200 W | 16.0 A | -20 to +40 °C |
| 03097.3-12 | Fan heater with integrated thermostat with internal temperature sensor | DC 56 V | 800 W | 20.0 A | -20 to +40 °C |
| 03097.3-13 | Fan heater with integrated thermostat with connector for external temperature sensor2 | DC 56 V | 800 W | 20.0 A | -20 to +40 °C |
| 03092.1-03 | Fan heater with integrated hygrostat with connector for external humidity sensor2 | DC 24 V | 200 W | 16.0 A | 40 to 90 % RH |
| 03095.3-03 | Fan heater with integrated hygrostat with connector for external humidity sensor2 | DC 56 V | 600 W | 20.0 A | 40 to 90 % RH |

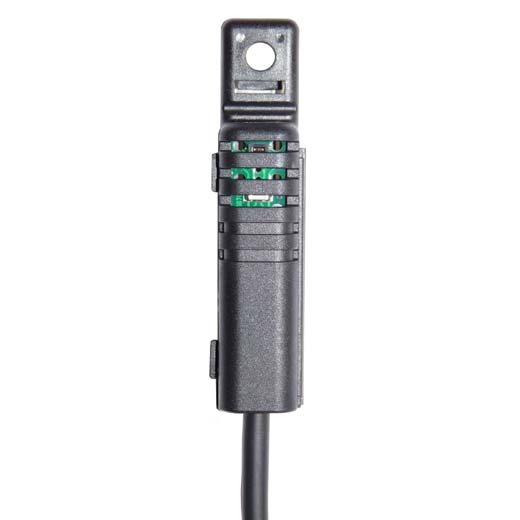

The external sensor is not included in the delivery of the DCR 030. It can be ordered separately.
The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and humidity.
| Art. No. | Length |
|---|---|
| 267071 | 1 m |
| 267072 | 2 m |
| 267126 | 3 m |
| Heating element | high performance cartridge |
|---|---|
| Temperature safety cut-out | with automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure |
| Heater body | extruded aluminium profile |
| Axial fan, ball bearing | airflow 160 m3/h, free flow service life 50,000h at +25 °C (+77 °F) |
| Connection | 2-pole ?Push-In“ connection clamp stranded wire1 1.5 mm2 |
| Casing | plastic according to UL94 V-0, black |
| Mounting | screw fixing (M5), torque 2 Nm max., washers have to be used |
| Fitting position | vertical airflow (air outlet up) |
| Dimensions | 166 x 145 x 100 mm |
| Weight | approx. 1.3 kg |
| Operating temperature | -20 to +75 °C (-4 to +167 °F) |
| Storage temperature | -40 to +80 °C (-40 to +176 °F) |
| Operating/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
| Approvals | UL File No. E234324, VDE, EAC |
| Note | other versions (heating capacities, setting ranges) as well as operating voltage DC 48 V on request |
1 When connecting with stranded wires, wire end ferrules must be used.
2 The external sensor needs to be ordered separately.
3 Switch difference temperature: 3 K (±1 K tolerance) at +25 °C (+77 °F), 50 % RH; switch difference humidity: 4 % RH (±1 % tolerance) at +25 °C (+77 °F), 50 % RH.
