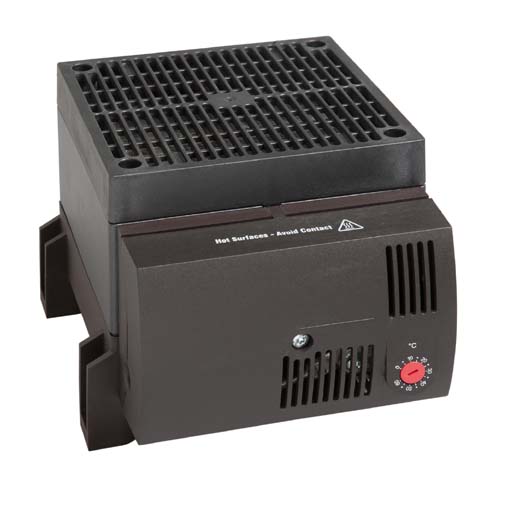

CS 030 | 1,200W
Applies to: The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CS 130 is recommended.
download> Compact design > Double insulated
> High heating performance > Integrated thermostat (optional)
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CS 130 is recommended.
Compact High-performance Fan Heater CS 030 Series (Semiconductor)
| Art. No. | Model | Operating voltage | Heating capacity1 | Inrush current max. | Recommended pre-fuse T (time-delay) | Setting range2 | Approvals | ||
|---|---|---|---|---|---|---|---|---|---|
| 03060.0-00 | Fan Heater with thermostat | 230VAC, 50/60Hz | 1,200W | 13.0A | 10.0A | 0 to +60°C | VDE | UL File No. E1500573 | EAC |
| 03060.0-01 | Fan Heater without thermostat | 230VAC, 50/60Hz | 1,200W | 13.0A | 10.0A | - | VDE | UL File No. E1500573 | EAC |
| 03060.9-00 | Fan Heater with thermostat | 120VAC, 50/60Hz | 1,200W | 16.0A | 16.0A | +32 to +140°F | - | UL File No. E1500573 | EAC |
| 03060.9-01 | Fan Heater without thermostat | 120VAC, 50/60Hz | 1,200W | 16.0A | 16.0A | - | - | UL File No. E1500573 | EAC |
1 at +20°C (+68°F) ambient temperature; 2 Switch temperature difference 7K (±4K tolerance); 3 according to UL 508A, NITW File on request
| Heating element | PTC resistor - temperature limiting |
|---|---|
| Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
| Axial fan, ball bearing | airflow 160m3/h, free flow service life 50,000h at +25°C (+77°F) |
| Connection | 2-pole max. 2.5mm2, clamping screw with strain relief, torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0, black |
| Mounting | screw fixing (M5) |
| Fitting position | vertical airflow (air outlet up) |
| Dimensions | 168 x 145 x 120mm |
| Weight | approx. 1.2kg |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
