RFP 018 | 300M³/H, 500M³/H
Applies to: Roof filter fans find use in enclosures and housings, from which warm air has to be diverted to lower the internal temperature. These low-noise roof filter fans are used to expel warm air from within the enclosure which has been generated by the stray power of the components and so protects the internal devices from overheating. To exchange the filter mat the hood can be easily opened without tools. The roof exit filter provides passive ventilation.
download> Very low noise > Time-saving installation and mat exchange
> Minimal depth in enclosure > High reliability
> High through-flow air volume
Roof filter fans find use in enclosures and housings, from which warm air has to be diverted to lower the internal temperature. These low-noise roof filter fans are used to expel warm air from within the enclosure which has been generated by the stray power of the components and so protects the internal devices from overheating. To exchange the filter mat the hood can be easily opened without tools. The roof exit filter provides passive ventilation.

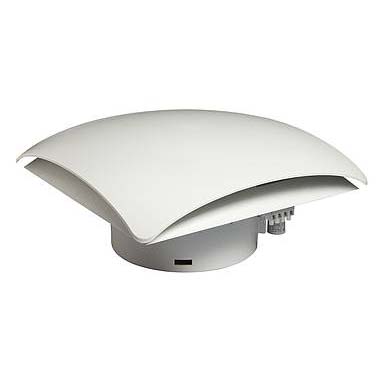

Roof Filter Fan RFP 018 300 m3/h (01860.0-xx)

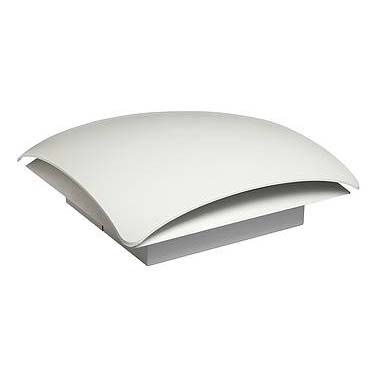

Roof Filter Fan RFP 018 500 m3/h (01861.0-xx)
| Art. No. | Operating voltage | Air volume, free flow | Power consumption | Average noise level (DIN EN ISO 4871) | Depth in enclosure | Enclosure cut-out | Weight (approx.) | Operating / Storage temperature |
|---|---|---|---|---|---|---|---|---|
| 01860.0-00 | 230VAC, 50Hz | 300m3/h | 68W | 55dB (A) | 52mm | 246 x 246 mm + 0.4 | 3.3kg | -10 to +70°C (+14 to +158°F) / -40 to +70°C (-40 to +158°F) |
| 01861.0-00 | 230VAC, 50Hz | 500m3/h | 64W | 67dB (A) | 107mm | 246 x 246 mm + 0.4 | 2.6kg | -25 to +70°C (-13 to +158°F) |
| 01860.0-02 | 120VAC, 60Hz | 345m3/h | 60W | 55dB (A) | 52mm | 246 x 246 mm + 0.4 | 3.3kg | -10 to +70°C (+14 to +158°F) / -40 to +70°C (-40 to +158°F) |
| 01861.0-02 | 120VAC, 60Hz | 575m3/h | 85W | 67dB (A) | 107mm | 246 x 246 mm + 0.4 | 2.6kg | -25 to +70°C (-13 to +158°F) |
| Art. No. | Depth in enclosure | Enclosure cut-out | Weight (approx.) | Filter mat | Protection type |
|---|---|---|---|---|---|
| 11860.0-00 | 11mm | 246 x 246 mm + 0.4 | 1.0kg | ISO coarse 55 % acc. to ISO 16890 (G3), initial gravimetric arrestance 57 % | IP32 |
| Filter mat | 282 x 282mm |
|---|---|
| G3 (1 packing unit = 3 pcs.) | Art. No. 08613.0-01 |
| Axial fans, ball bearing | service life 50,000h at +25°C (+77°F), 65% RH |
|---|---|
| fan body aluminium, rotor plastic | |
| Connection | 3-pole clamp for 2.5mm2, clamping torque 0.8Nm max. |
| Casing | plastic according to UL94 V-0, light grey; |
| weather proof and UV light resistant according UL746C (f1) | |
| Filter mat | ISO coarse 55 % acc. to ISO 16890 (G3), initial gravimetric arrestance 57 % |
| Filter material | synthetic fibre with progressive construction, temperature |
| resistant to +100°C, self-extinguishing class F1, | |
| moisture resistant to 100% RH, reusable - cleaning by | |
| washing or vacuuming | |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP32 / I (earthed) |
| Approvals | EAC, VDE (230VAC only) |
Important note: For reasons of pressure compensation the roof filter fan must always be operated in combination with a passive intake filter (e.g. Art. No. 11803.0-00) or another filter fan (e.g. Art. No. 01803.0-00).
